Part No.

SEN454

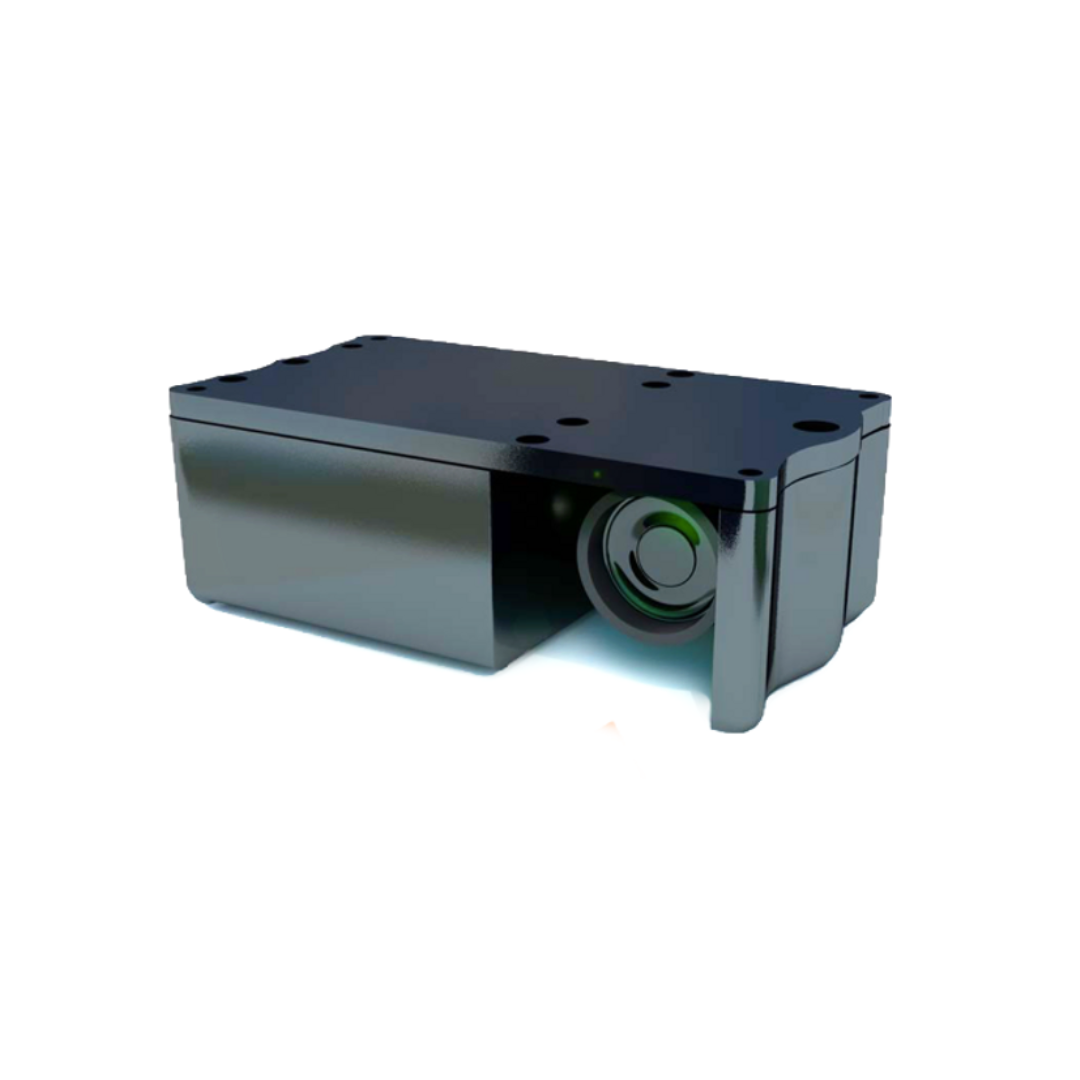

Wireless container fill-level monitoring device makes your waste collection intelligent and cost effective.



The device has many advantages over currently available solutions in the market. The device is more rugged, has a 40% smaller body design, and has an adjustable tunnel sensor angle to fit 90% of bins. The moving tunnel allows the device to be mounted in different orientations and the installation takes around 10 minutes. The operating temperature range is -20 C to +70 C to cover all regions across the globe.

The sensor is fully compatible with the most widely used LPWAN technologies like Lorawan, Sigfox and NBIoT. LPWAN technologies prolong device life and wireless range, leading to several years of operation on a single battery. The device supports most Lorawan regions including Europe 868 MHz, Australia/Canada 900-930 MHz, India 865MHz, and the USA. Any region support which is not listed here is also provided on request.



Please contact us for pricing and Trade accounts or request a quote using the 'add to quote' button below. You can create a list of items and send a quote request direct to us.

 To view your quote list please click on the 'view quote' button on the edge of this page. When you are ready please fill in your details and click on submit. We will then get back to you with a quote.


For the most up-to-date information on this product please download the Product Brochure above.


  • OVERVIEW
  • Detail
  • TECHNICAL

Features, Benefits & Functions

  • Selectable Configuration: Raw distance or percentage fill level ( transmit after 25% or 50% or 75% etc. )
  • Can measure solid objects
  • Easy installation.Can be mounted by screws or rivets
  • Moveable tunnel offers flexible mounting
  • Durable in extreme environments
  • Zero maintenance
  • Ultrasonic Sensor
  • Adjustable in any direction at any angle
  • Range: 20-450 cm
  • Accuracy: Typically 5%
  • Monitors fill level, battery and temperature (Celius)
  • Alarm generation on fire detection
  • Lower carbon footprint

The device has many advantages over currently available solutions in the market. The device is more rugged, has a 40% smaller body design, and has an adjustable tunnel sensor angle to fit 90% of bins. The moving tunnel allows the device to be mounted in different orientations and the installation takes around 10 minutes. The operating temperature range is -20 C to +70 C to cover all regions across the globe.

The sensor is fully compatible with the most widely used LPWAN technologies like Lorawan, Sigfox and NBIoT. LPWAN technologies prolong device life and wireless range, leading to several years of operation on a single battery. The device supports most Lorawan regions including Europe 868 MHz, Australia/Canada 900-930 MHz, India 865MHz, and the USA. Any region support which is not listed here is also provided on request.

Technical

LoRaWAN Supported RegionsLoraWAN EU 863 to 870 MHz
 LoraWAN USA 902 to 928 MHz
 LoraWAN AUS 915 to 928 MHz
 LoraWAN IND 865 to 867 MHz

Sensor TypeUltrasonic Sensor
AntennaBuilt-in
Operating Temperature-20  C to +70  C
ProtectionFire Alarm
 Temperature Sensor

Device life>7 years (4 transmissions per day)
Sleep current<10 uA
Weight360 grams
Dimensions130 x 70 x 53 mm ( L x W x H )
Casing MaterialABS ( Acrylonitrile Butadiene Styrene )
