EnOcean Switch
EnOcean SwitchEnOcean Switch

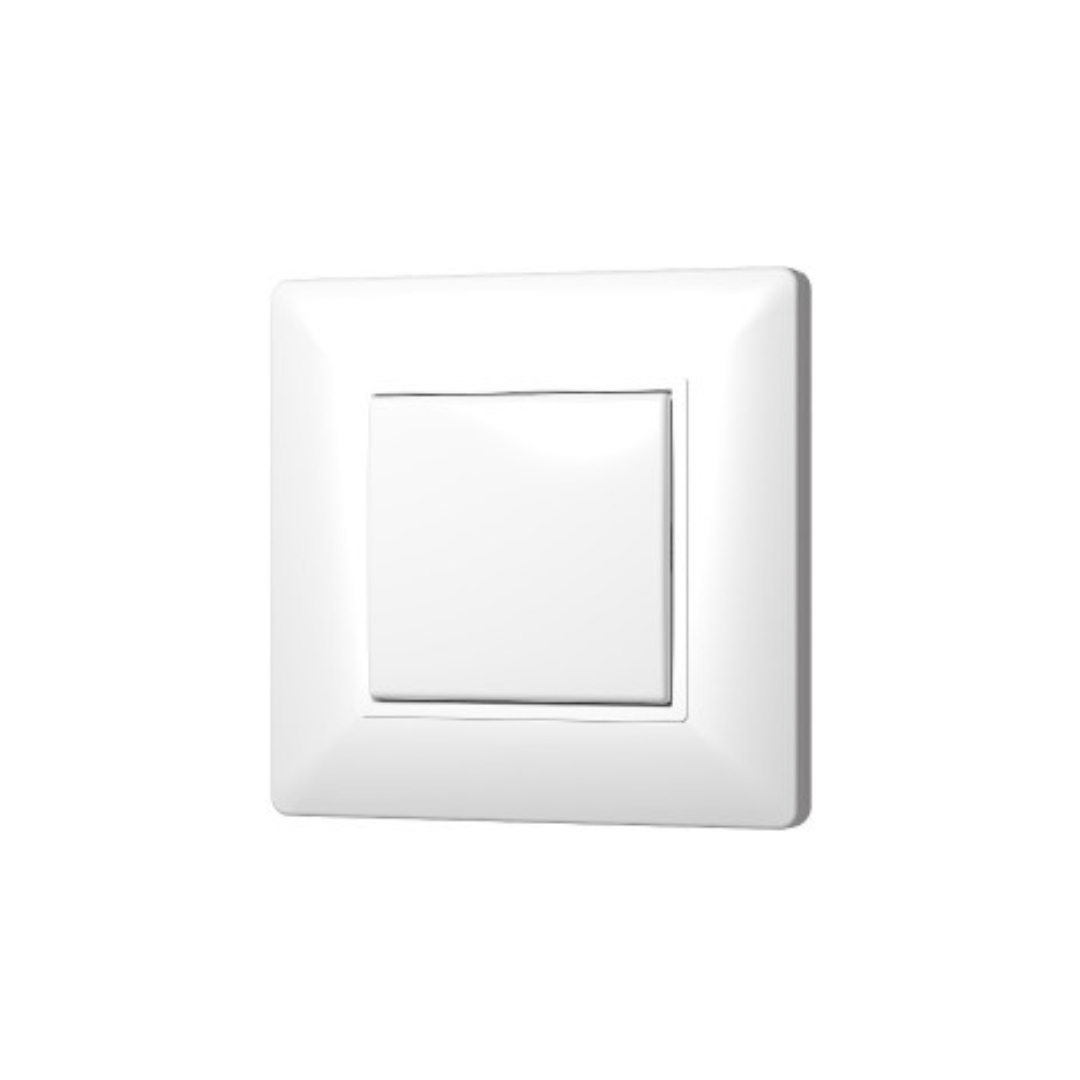

SW009

    No wires, no battery, so no maintenance.



    Paired with a receiver, the wireless & battery-free transmitter switch is used to control remotely various electrical devices. It is especially convenient for electrical installations without embedding, for example: renovations, modification of home or office with moving walls. Just press a switch key to manage any devices via receivers. Before any use, the switch must be associated to a receive, such as a MobiusFlow EnOcean Connector and Gateway.

Please contact us for pricing and Trade accounts or request a quote using the 'add to quote' button below. You can create a list of items and send a quote request direct to us.

 To view your quote list please click on the 'view quote' button on the edge of this page. When you are ready please fill in your details and click on submit. We will then get back to you with a quote.

    View Quote

For the most up-to-date information on this product please download the Product Brochure above.


  • OVERVIEW
  • Detail
  • TECHNICAL

Features, Benefits & Functions

  • Radio prevents cabling constraints
  • no battery required thanks to the user's kinetic energy
  • These modular transmitter switches can be placed at any place of the room and be reallocated at will
  • Easy installation (screws, double-sided adhesive tape)

Paired with a receiver, the wireless & battery-free transmitter switch is used to control remotely various electrical devices.  It is especially convenient for electrical installations without embedding, for example: renovations, modification of home or office with moving walls. Just press a switch key to manage any devices via receivers. Before any use, the switch must be associated to a receive, such as a MobiusFlow EnOcean Connector and Gateway.



EnOcean

Self-powered Internet of Things. EnOcean stands for energy harvesting wireless technology, which enables maintenance-free sensor solutions delivering data for intelligent networks in buildings and the Internet of Things.

Energy Harvesting

wireless sensors harvest and manage the smallest amount of energy from their environment.

Wireless

EnOcean uses wireless standards optimized for solutions with ultra-low power consumption and energy harvesting.

Ultra-low Power

Energy management and highly efficient energy storage are key to wireless technology for battery-less wireless sensor solutions.

Technical

Transmission frequency868.3MHz
Transmission power10mW max
Switch transmitter dimensionsbase 80x80mm x height 15mm
Operating temperaturefrom -25°C up to +65°C
Storage temperaturefrom -25°C up to +65°C

Commutation cycles> 50.000
CertificationsCE et R&TEE directive 1999/5/CE
Air relative humidityfrom 0%up to 95%

Range in buildings
Masonry20m, through 3 walls maximum
Reinforced concrete10m, through 1 wall/ceiling maximum
Plasterboard / Wood30m, through 5 walls maximum
